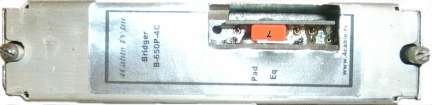

B650G  Bridger Amplifier
..			Drop In replacement for Magnavox/Philips B** Operational  Gain 27 dB – Low Distortion 100% New Board – Low Noise Figure 6 dB Plug in EQ’s and Pads for maximum flexibility GaAs FET Technology
Specifications in Housing
Parameter	Test Conditions		Units	Notes	Forward
Technology	-		-	-	GaAs FET PD
Bandwidth	-		MHz	-	54-650
Response Flatness	-		dB	-	+/-0.5
Minimum Full Gain	-		dB	1	27
Operational Gain	-		dB	-	27
Slope	-		dB		Fixed with plug in  EQ
Input Return Loss	Freq	54-650 MHz	dB	2	16
Output Return Loss	Freq	54-650 MHz	dB		16
DC Current Draw (max)	-		mA	-	450
Noise Figure	-		dB	-	6
Distortion Measurements @ rated loading
Reference Frequencies	-		MHz		55/550/650
Output Levels	-		dBmV	-	37/47/49
Channel Loading	-		NTSC	3	77 + digital above 550 MHz
Composite Triple Beat	-		dBc	-	75
Composite Second Order			dBc	-	72
Carrier to Noise			dB	-	65
Cross Modulation			dBc	-	75

Notes:

1.                   Factory alignment flat .

2.                   All return loss measurements made with 0 dB pads and a  #18 gauge wire jumpers in place of the equalizers.

3.                   Distortion measurements made with 77 analog  and digital channels running 6 dB down from an analog equivalent.

4.                   750 MHz version available on special order 1 dB higher gain and distortions will be 1 dB lower

Available now from stock to 4 weeks

Contact:      4Cable TV Inc.                              877-825-6409

1248 Highway 501 Business

Conway SC 29526
