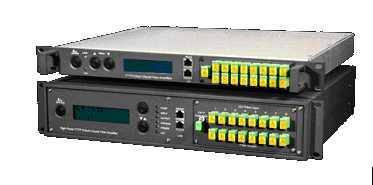

1550nm CATV High Power EDFA

4Cable  4C5400 series high power single mode EDFA is characterized with low noise, high linearity. It offers a flexible, low-cost solution for large area coverage and FTTH.  4C5400 series is equipped with completed APC, AGC, ATC control, an excellent design for heat-dispersion which guarantees long life  and stable operation of the PUMP laser. RS232 and RJ45 on the front panel offers serial communication and SNMP network interface. The wide LCD displays all the parameters of the whole unit and alarms. The laser will be automatically switched off if optical power is missing.  All of the optical outputs are located on the front panel (can be on back panel if desired).

4C5400A: 1RU chassis, total output power >1000mW, offers maximum 16 optical outputs.
4C5400B: 2RU chassis, total output power >4000mW, offers maximum 64 optical outputs.

Specifications

Performance

Addendum

Min.

Typ.

Max.

Optical feature

 Wavelength

(nm)

1540

1560
Input power

(dBm)

0

3

10
Total output power

(dBm)

26

36
Each port output power

(dBm)

10

22
Number of output port

8

32
Difference of each output power

(dB)

-0.5

+0.5
Noise figure

(dB)

4.5

6.5
System CNR deterioration

(dB)

1.0

Pin=6dBm
Polarization dependence gain

(dB)

0.4
Polarization mode dispersion

(ps/nm)

0.3
Pump power leakage

(dBm)

-30
Echo loss

(dB)

50
Optical connectors

SC/APC, LC/APC

General features

 Serial interface

RS232
SNMP network management interface

RJ45
Power supply (220VAC)

(V)

100

250

Optional -48VDC
Power

(W)

50

170
Work temp.

( °C )

-10

65
Storage temp.

(°C )

-40

80
Relative humidity

(%)

5

95
Size (W) × (D) × (H)

(″)

19 × 14.5 × 1.75

1RU: 4C5400A

19 × 14.5 × 3.5

2RU: 4C5400B























































Models

Model

Total output power

Number of output port

Each port output power

Connector

4C5426A-04

≥26dBm(400mw)

4

≥19dBm

SC/APC, LC/APC

4C5426A-08

8

≥15.5dBm

SC/APC, LC/APC

4C5426A-16

16

≥12.0dBm

SC/APC, LC/APC

4C5427A-04

≥27dBm(500mw)

4

≥20dBm

SC/APC, LC/APC

4C5427A-08

8

≥16.5dBm

SC/APC, LC/APC

4C5427A-16

16

≥13.0dBm

SC/APC, LC/APC

4C5428A-08

≥28dBm(630mw)

8

≥17.5dBm

SC/APC, LC/APC

4C5428A-16

16

≥14.0dBm

SC/APC, LC/APC

4C5429A-08

≥29dBm(800mw)

8

≥18.5dBm

SC/APC, LC/APC

4C5429A-16

16

≥15.0dBm

SC/APC, LC/APC

4C5430B-08

≥30dBm(1000mw)

8

≥19.5dBm

SC/APC, LC/APC

4C5430B-16

16

≥16.0dBm

SC/APC, LC/APC

4C5431B-08

≥31dBm(1260mW)

8

≥20.5dBm

SC/APC, LC/APC

4C5431B-16

16

≥17.0dBm

SC/APC, LC/APC

4C5431B-32

32

≥13.5dBm

LC/APC

4C5432B-08

≥32dBm(1580mW)

8

≥21.5dBm

SC/APC, LC/APC

4C5432B-16

16

≥18.0dBm

SC/APC, LC/APC

4C5432B-32

32

≥14.5dBm

LC/APC

4C5433B-08

≥33dBm(2000mW)

8

≥22.5dBm

SC/APC, LC/APC

4C5433B-16

16

≥19.0dBm

SC/APC, LC/APC

4C5433B-32

32

≥15.5dBm

LC/APC

4C5433B-64

64

≥12.0dBm

LC/APC

4C5434B-08

≥34dBm(2150mW)

8

≥23.5dBm

SC/APC, LC/APC

4C5434B-16

16

≥20.0dBm

SC/APC, LC/APC

4C5434B-32

32

≥16.5dBm

LC/APC

4C5434B-64

64

≥13.0dBm

LC/APC

4C5435B-16

≥35dBm(3160mW)

16

≥21dBm

SC/APC, LC/APC

4C5435B-32

32

≥17.5dBm

LC/APC

4C5435B-64

64

≥14.0dBm

LC/APC

4C5436B-16

≥36dBm(4000mW)

16

≥22dBm

SC/APC, LC/APC

4C5436B-32

32

≥18.5dBm

LC/APC

4C5436B-64

64

≥15.0dBm

LC/APC
