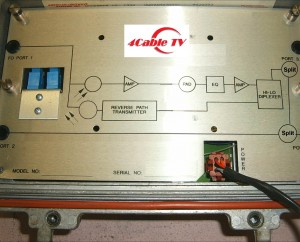

4C739N1GLC1  1 GHz NODE Single Output Hybrid
LOW CURRENT 550 mA
			Starting at $499.00 PowerMiser™ Fits in C-Cor 4Output Housing Low Current Draw Higher Reliability due to Lower Heat High Output  52 dBmV @ 1GHz 1310 FP or DFB or 1550 DFB Laser Standard Antec LEQ type Linear EQ’s and C-Cor Pads Plug in Diplexer for future split changes Breakthrough Low Current Technology Plug in splitters for 3 outputs, 1Hi(-3.5dB) and 2 Low(-7dB)
Specifications in Housing
Parameter	Test Conditions		Units	Notes	Forward		Reverse
Technology	-		-	-	GaAs		GaAs
Bandwidth	-		MHz	-	54-1003		5-40
Optical wavelength			nm	1	1290-1600		1310
Response Flatness	-		dB	-	+/-0.5		+/-0.5
Minimum Full Output	-4 dBm light input		dBmV	5	52 dB @ 1 GHz		N/A
Input Test Points	-		dB	-	N/A		-20 +/-1
Output Test Points	-		dB	4	-20 +/-1		N/A
Output Return Loss	Freq	5-40 MHz	dB		-		16
		54-1003 MHz			16
Minimum Light Input			dBm		-5
Minimum Light Output			mW		2
DC Current Draw (max)	@24 Volts DC		mA	-	550
AC Current Draw (max)	90 VAC		mA	-	200
	60 VAC				268
	50  VAC				308
	40  VAC				390
Noise Figure	-		dB	-	N/A	4.5
Distortion Measurements @ rated loading
Reference Frequencies	-		MHz		55/550/870/1GHz	T7-T12
Output Levels	-		dBmV	-	35/44/49.5/52	36
Channel Loading	-		NTSC	3	79 + 450 MHz  digital or equalivlent	4 channels
Composite Triple Beat	-		dBc	-	70		>80
Composite Second Order			dBc	-	71		>80
Carrier to Noise			dB	6	52		43
Cross Modulation			dBc	-	73		>80

www.4cable.tv

 Notes:

1.                 Standard is no return laser, options include FP or DFB 1310 and DFB 1550

2.                 All return loss measurements made with 0 dB pads and #18 gauge wire jumpers in place of the equalizers.

3.                 Distortion measurements made with 79 analog channels and 450 MHz digital channels or equalivlent noise running 6 dB down from an analog equivalent.

4.                 Onboard forward and reverse directional coupler test points

5.       -4 dBm light input will give you a minimum of 48 dB C/N

6.       -1dBm light input

 Options:

                                                        option H           Housing                                                   add $150.00

                    option 000       FP Return Laser 1310 nm                    add $100.00

                    option 001       DFB Return Laser 1310 nm                 add $250.00

                    option 002       DFB Return Laser 1550 nm                 add $250.00

                    option 003       1550/1310 WDM installed                    add $100.00

                    option 004        Auto Power Down (Mute)                   add $100.00

Available now from stock to 4 weeks

Contact:           4Cable TV Inc.                               877-825-6409

1248 Highway 501 Business

Conway SC 29526

www.4cable.tv                         sales@4cable.tv
