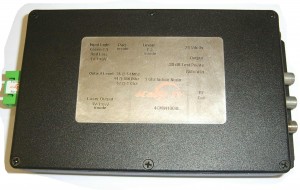

4CMIN1000L  1 GHz INDOOR NODE
LOW CURRENT Low Heat
			Starting at $474.00 PowerMiser™ Small 7.4 X 4.7 X 1.3 Low Current Draw Higher Reliability due to Lower Heat High Output  52 dBmV 1310 FP or DFB or 1550 DFB Laser Standard Interstage Pads Plug in Diplexer for future split changes External 24 Volt Power Supply Breakthrough Low Current Technology Option for installed WDM Option for No Input signal power down
Specifications in Housing
Parameter	Test Conditions		Units	Notes	Forward		Reverse
Technology	-		-	-	GaAs		GaAs
Bandwidth	-		MHz	-	54-1003		5-40
Optical wavelength			nm	1	1290-1600		1310
Response Flatness	-		dB	-	+/-0.5		+/-0.5
Minimum Full Output	-4 dBm light input		dBmV	5	52 dB @ 1 GHz		N/A
Input Test Points	-		dB	-	N/A		-20 +/-1
Output Test Points	-		dB	4	-20 +/-1		N/A
Output Return Loss	Freq	5-40 MHz	dB		-		16
		54-1003 MHz			16
Minimum Light Input			dBm		-5
Minimum Light Output			mW		2
DC Current Draw (max)	@24 Volts DC		mA	-	440
Noise Figure	-		dB	-	N/A	4.5
Distortion Measurements @ rated loading
Reference Frequencies	-		MHz		55/550/870/1GHz	T7-T12
Output Levels	-		dBmV	-	35/44/49.5/52	36
Channel Loading	-		NTSC	3	79 + 450 MHz  digital or equalivlent	4 channels
Composite Triple Beat	-		dBc	-	70		>50
Composite Second Order			dBc	-	71		>50
Carrier to Noise			dB	-	52		43
Cross Modulation			dBc	-	73

www.4cable.tv

 Notes:

1.                   Standard is no return laser, options include FP or DFB 1310 and DFB 1550

2.                   All return loss measurements made with 0 dB pads and a  #18 gauge wire jumpers in place of the equalizers.

3.                   Distortion measurements made with 79 analog channels and 450 MHz  digital channels or equalivlent noise running 6 dB down from an analog equivalent.

4.                   Onboard forward and reverse directional coupler test points

5.        -4 dBm light input will give you a minimum of 48 dB C/N

 Options:

                                                        option 000         FP Return Laser 1310 nm                    add $150.00

                    option 001        DFB Return Laser 1310 nm                  add $250.00

                    option 002        DFB Return Laser 1550 nm                  add $250.00

                    option 003         1550/1310 WDM installed                    add $100.00

                    option 004        Auto Power Down (Mute)                     add $100.00

Available now from stock to 4 weeks

Contact:           4Cable TV Inc.                               877-825-6409

1248 Highway 501 Business

Conway SC 29526
