  4CSF1039  1 GHz Mini Trunk2YEAR

LOW CURRENT 460 mA with AGC


Drop In replacement for CCor  SF-739

PowerMiser™

  • High Gain 41 dB
  • ½ the Current Draw of Conventional  Amps
  • $8.00 per year average savings on Electric
  • Low Noise Figure 8 dB
  • High Output  52 dBmV
  • Built in Return Amplifier
  • Standard Interstage EQ’s and Pads
  • Plug in Diplexers for future split changes
  • Uses CCor SF-739 Power Supply
  • Up to 3 field switch able outputs
  • Breakthrough Low Current Technology



Specifications in Housing
Parameter Test Conditions

Units

Notes

Forward

Reverse
Technology -

-

-

GaAs

GaAs
Bandwidth -

MHz

-

54-1003

5-42
Response Flatness -

dB

-

+/-0.75

+/-0.5
Minimum Full Gain -

dB

1

41

17
Operational Gain -

dB

-

37

16


Slope Built in Cable Equivalent

dB



22

0


AGC +3.5 /-4.5 dB  Change

dB

7

±  .5 dB Change

NA


Input Test Points -

dB

-

-20 +/-1

-20 +/-1


Output Test Points -

dB

5

-20 +/-1

External on housing


Input Return Loss Freq 5-40 MHz

dB

 2

-

16


54-1003 MHz

16


Output Return Loss Freq 5-40 MHz

dB



-

16


54-1003 MHz

16


Loop Isolation -

dB

-

> 30


DC Current Draw (max) with AGC @24 Volts DC

mA

-

460


Without AGC @24 Volts DC

mA



430
AC Current Draw (max)  with AGC 90 VAC

mA

-

N/A


60 VAC

200


50  VAC

240


40  VAC

300


Noise Figure -

dB

-

8

4.5



Distortion Measurements @ rated loading


Reference Frequencies -

MHz



55/550/870/1GHz

T7-T12


Output Levels -

dBmV

-

35/44/49.5/52

36


Channel Loading -

NTSC

3

79 + 450 MHz  digital or equalivlent

4 channels


Composite Triple Beat -

dBc

-

74

86
Composite Second Order

dBc

-

77

86
Carrier to Noise

dB

-

 60

74
Cross Modulation

dBc

-

74

84

www.4cable.tv

Notes:

  1. Factory alignment with 22 dB cable equivalent, and 17 dB of flat gain.  42 dB gain version available
  2. All return loss measurements made with 0 dB pads and a  #18 gauge wire jumpers in place of the equalizers.
  3. Distortion measurements made with 79 analog channels and 450 MHz  digital channels or equalivlent noise running 6 dB down from an analog equivalent.
  4. Resistive -20 dB test points on the housing
  5. Reverse sweep can be inserted using the output test point of the restive test point on the housing
  6. Field configurable 1, 2 or 3 output with plug-in splitters and Directional couplers
  7. BODE Control

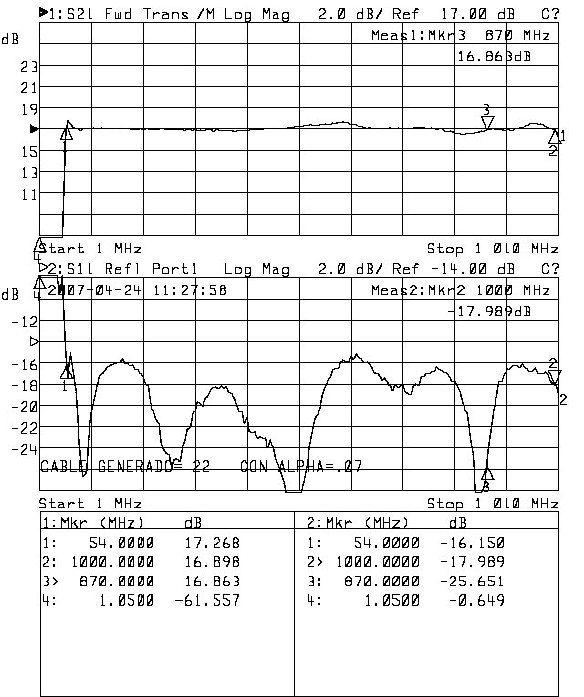

Recorded Sweep

4CLE103

Available now from stock to 4 weeks
